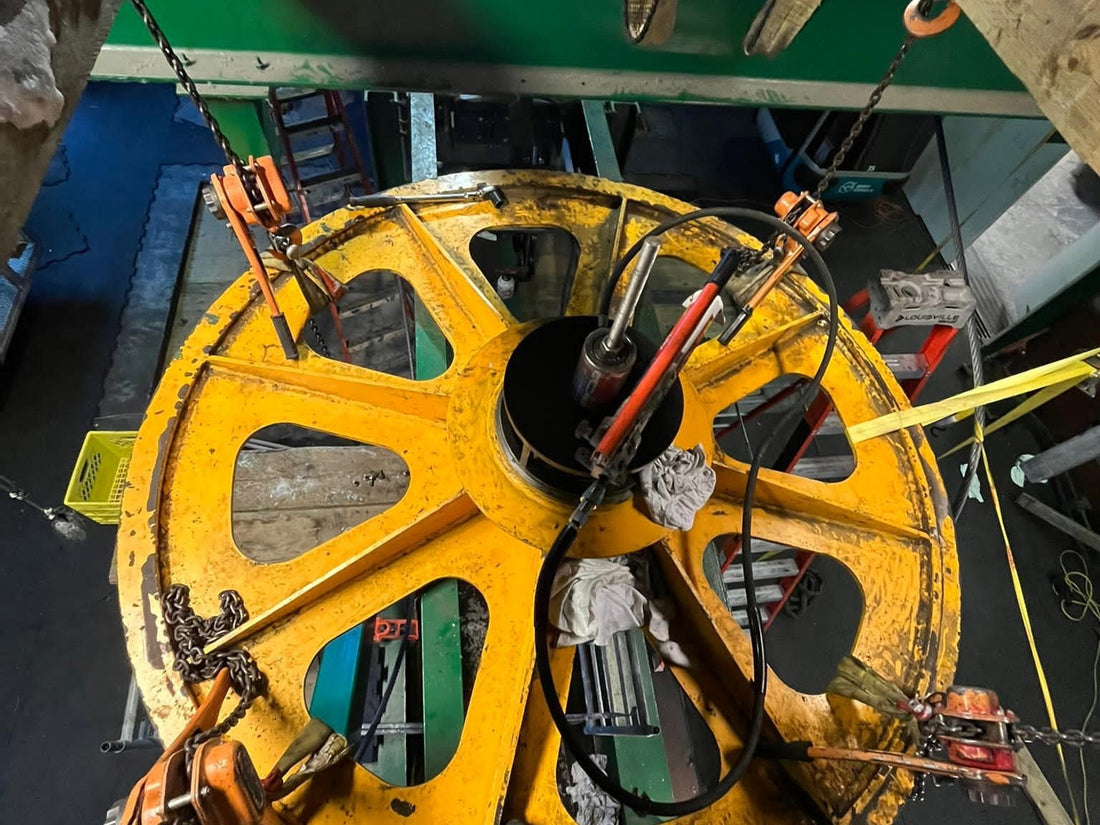

Why Are Bull Wheels Important?

Bull wheels are basically the heart of a ropeway system. Here’s why they’re so important:

1. They carry and guide the haul rope. The rope has to run in a perfect loop. The bull wheels make that possible by providing the big, smooth turning points at each end of the lift.
2. They transfer power. The drive bull wheel connects to the lift’s motor and gearbox. Without it, there’s no way to convert motor power into rope movement.
3. They keep the rope under control. Their size and groove profile spread out the forces over a large area. This prevents rope damage and ensures smooth operation.
4. They allow for tensioning. One of the bull wheels (often the return bull wheel) is mounted on a carriage or hydraulic system. This keeps the rope tight, compensating for stretch, temperature changes, and load.
5. They make the system reliable and safe. If a bull wheel were misaligned or damaged, the rope could derail, the lift could stop (or worse!), so maintaining them is a top priority.
