Description

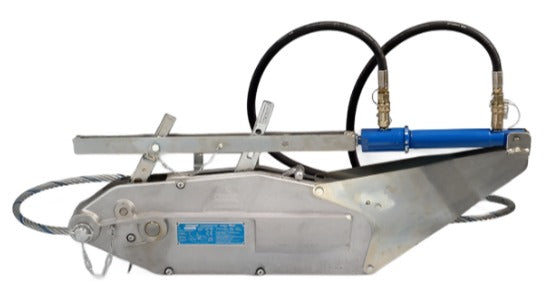

xThe Habegger manual wire rope hoist HIT-32 can be converted to a hydraulic drive in a straightforward procedure. The direction is changed by shifting the cylinder attachment from the forwards to the reverse lever. They hydraulic unit is separate. One or two units can be operated at the same time, depending on the hydrauic drive.
The HIT-32 Hydraulic Drive for one unit includes the following
* Hydraulic Group Gas Motor with 1 connection: Article #00529
* Manual Hoist HIT-32 (without rope): Article #00899
* Hydraulic Cylinder: Article #00158
* Support for Hydraulic Cylinder: Article #00164
* 3 Meter Hydraulic Hose: Article #00450 (other lengths available)
* 5 Liters Oil: Article #00544
Specifications
Dimensions: 111x40x15cm
Rated Force: 3200kg
Speed Forwards/lift: 0.3m/min
Speed Reverse/lower: 1.2m/min
Weight without rope: 30.9kg
Wire Ropes
Wire rope for the HIT-TRAC 128E is available on request. It is recommended that only Habegger wire ropes be used with their hoists. Use of any other wire rope will nullify the warranty.
