HIT-TRAC 16B

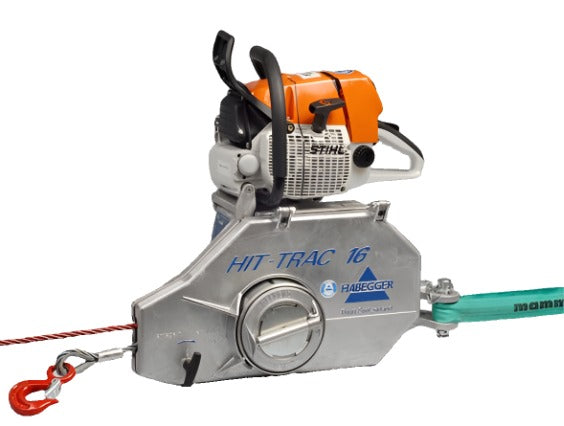

The Habegger HIT-TRAC 16B is a high performance power driven hoist used for heavier loads, with petrol engine. Loads can be lowered manually.

High performance for heavier loads, with petrol engine. Loads can be lowered manually.

A wire rope of any length serves as the pulling medium.  The rope is directed around the driving wheel by the pressure and guiding roller, and pushed out again without any load on it.   The driving wheel system is patented.  Force is transmitted from the flanks of the driving wheel via the three-point rocker onto the rope that is looped around the driving sheave.  The wire rope can be quickly and easily inserted and removed at any point along its length.  There is no longer any need to go to the trouble of threading it in from one end.

Specifications for the HIT-TRAC 16B

Rated force (pulling, lifting, lowering): 1600 kg
Overload protection by sliding clutch:    at approx. 20% overload
Rope speed: max. 10 m/min
Rope length: unlimited
Weight including engine: 44 kg
Rope diameter: 8.2 mm  / 11.2 mm
Effective rope breaking load: 50 kN / 80 kN
Drive motor: STIHL 660
Power: 5.2 kW

Wire Ropes

Wire ropes for the HIT-TRAC 16B are available in varying lengths with reel and without.  It is recommended that only Habegger wire ropes be used with their hoists.  Use of any other wire rope will nullify the warranty.
