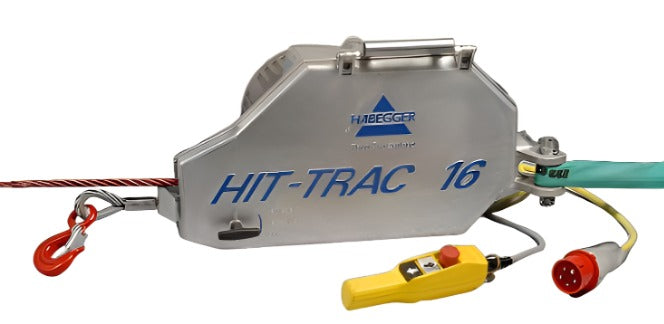

HIT-TRAC 16E

The Habegger HIT-TRAC 16E with an electric motor lifts and lowers loads smoothly at the push of a button.

Specifications for the HIT-TRAC 16E

Rated force (pulling, lifting, and lowering): 1600 kg
Overload protection by thermocouple
Rope speed: max. 10 m/min
Rope length: unlimited
Weight including engine: 58 kg
Rope diameter: 8.2 mm  / 11.2 mm
Effective rope breaking load: 50 kN / 80 kN 3-phase AC
Drive motor: 380-400 V / 50Hz 6.8 A
Power: 5.2 kW Intermittent duty: 30 %
Wire Ropes: Wire ropes for the HITTRAC 16E are available in varying lengths with reel and without.

Wire Ropes

Wire rope for the HIT-TRAC 128E is available on request. It is recommended that only Habegger wire ropes be used with their hoists. Use of any other wire rope will nullify the warranty.
