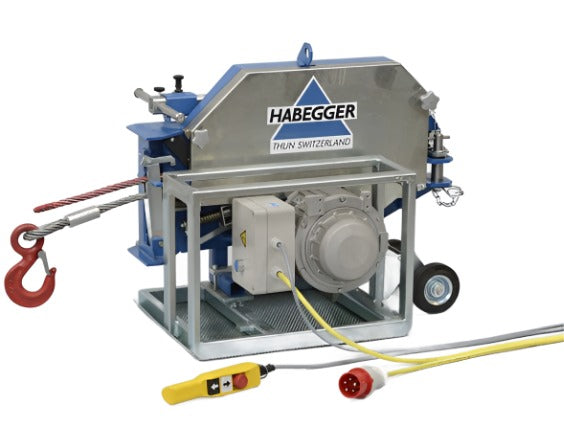

HIT-TRAC 32E

The Habegger HIT-TRAC 32E is the professional wire pulling machine for pulling loads up to 3,2 tonnes directly.

A wire rope of any length serves as the pulling medium.  The rope is directed around the driving wheel by the pressure and guiding roller, and pushed out again without any load on it.   The driving wheel system is patented.  Force is transmitted from the flanks of the driving wheel via the three-point rocker onto the rope that is looped around the driving sheave.  The wire rope can be quickly and easily inserted and removed at any point along its length.  There is no longer any need to go to the trouble of threading it in from one end.

Specifications for the HIT-TRAC 32E

Rated force (pulling, lifting, lowering): 3200 kg
Overload protection by thermocouple
Rope speed: max. 5 m/min
Rope length: unlimited
Weight including engine: 160 kg
Rope diameter: 16 mm
Effective rope breaking load: 94 kN
3-phase AC Drive motor: 400 V / 7.8 A
Power: 3 kW
Intermittent duty: 30 %

Wire Ropes

Wire rope for the HIT-TRAC 32E is available on request.   It is recommended that only Habegger wire ropes be used with their hoists.  Use of any other wire rope will nullify the warranty.
