Description

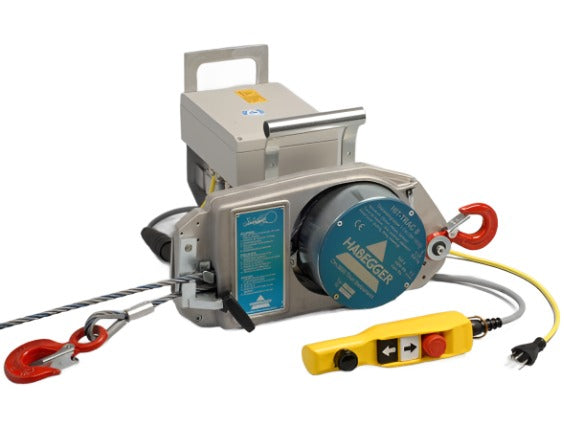

xThe Habegger HIT-TRAC 8E is a new and super light power-driven rope pulling machine for lifting, pulling and lowering with unlimited rope length.
A new and super-light power-driven rope pulling machine for lifting, pulling and lowering with unlimited rope length.
A wire rope of any length serves as the pulling medium. The rope is directed around the driving wheel by the pressure and guiding roller, and pushed out again without any load on it. The driving wheel system is patented. Force is transmitted from the flanks of the driving wheel via the three-point rocker onto the rope that is looped around the driving sheave. The wire rope can be quickly and easily inserted and removed at any point along its length. There is no longer any need to go to the trouble of threading it in from one end.
Specifications for the HIT-TRAC 8E
Rated force (pulling, lifting, lowering): 800 kg
Overload protection by sliding clutch: at approx. 20% overload
Rope speed: about 1 - 6m/min
Rope length: unlimited
Weight including engine: 32 kg
Rope diameter: 8.2 mm
Effective rope breaking load: 50 kN
Electric Drive motor: 230 V
Power: 2.6 kW
Intermittent duty: 30%
Wire Ropes
Wire ropes for the HIT-TRAC 8E are available in varying lengths with reel and without. It is recommended that only Habegger wire ropes be used with their hoists. Use of any other wire rope will nullify the warranty.
